CLACK
WS2HF

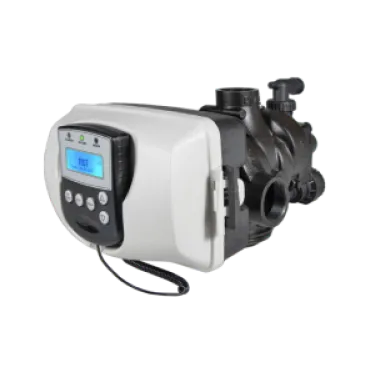

- Control Valve Flow Rates: Service 165 gpm (624 lpm) (37 m3/h)
Backwash 175 gpm (662 lpm) (39 m3/h) - Epoxy coated lead free brass valve body
- Fully programmable regeneration cycle times and sequences (maximum 9)
- Network up to 16 valves using Cat5 cable or better
- Methods to initiate regeneration: Meter Delayed, Meter Immediate, Time Clock Delay, Auxiliary Input, Modbus Initiated
- Add up to 2 relay expansion boards to circuit board (sold separately)
- Top-mount or side-mount capabilities for commercial and industrial applications
- Programmable System types: Single, Alternating, Progressive Flow, Series
- Day override feature; 1-28 days or 7 day
- Blue backlight front display shows: Time and Date, Current Flow Rate, Volume Used, Volume Remaining, Days Remaining
- Diagnostics and history viewing
- Modbus RS485 duplex to communicate with building automation systems
- On-Site circuit board software update capability
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
| General | |
| Inlet/Outlet Fitting Connections | 2" Female NPT or BSPT |
| Cycles | up to 9 |
| Valve Material | Lead free brass |
| Regeneration | Downflow |
| Operating Pressures | 20 - 125 psi (1.4 - 8.6 bar) |
| Operating Temperatures | 40º - 110º F (4º - 43º C) |
| Options | Backwash Filter |
| FLow rates | |
| Service @15 psi drop | 125 gpm (473 lpm) (28.4 m3 /h) |
| Backwash @25 psi drop | 125 gpm (473 lpm) (28.4 m3 /h) |
| Cv Service | 32.3 |
| Cv Backwash | 25.0 |
| Tank applications | |
| Water Softener | 18" - 63" diameter |
| Water Filter | 18" - 48" diameter |
| Dimensions & Weight | |
| Distributor Pilot | Valve Bodies with 2" Female NPT Inlet & Outlet - 2.375" OD (2" NPS) Valve Bodies with 2" Female BSPT Inlet & Outlet - 63mm OD |
| Drain Line | 2" Female NPT/BSPT/2.5" Groove Lock |
| Brine Line | 1" Male NPT elbow ¾" x 1" solvent weld elbow Optional Adapters - 1/2" or 5/8" OD Poly Tube Compression |
| Mounting Base | 4" - 8 UN, 6" Flange or Side Mount |
| Height From Top Of Tank | With 4" - 8 UN QC Base - 11.5" (292mm) With 6" Flange QC Base - 11.6" (294.6mm) |
| Weight | 50 lbs (22.7 Kg) |
| Cycles of Operation Minutes |
|
| Backwash 1st (upflow) | 1 - 95 |
| Regenerate Draw/Slow Rinse (downflow) | 1-180 / 1-95 |
| Fast Rinse (downflow) | 1-95 |
| Regenerant Refill in service with treated water |
0.1 - 99 |
| Hold (service) | 1 - 480 |
| Electrical Specifications All models excluding WS1.25SD |
US Power Supply | International Power Supply |
| Supply Voltage | 120VAC | 240VAC |
| Supply Frequency | 60 Hz | 60 Hz |
| Output Voltage | 24VDC | 24VDC |
| Output Current | 800 mA | 800 mA |
DATA SHEET WS2HF
BIRM®
NSF/ANSI/CAN 61
Clack Birm® is a granular filter media commonly used for the reduction of iron and/or manganese from water supplies.
- Under the proper conditions, no chemicals to purchase for maintenance. Regenerant not required.
- Iron removal efficiency is extremely high.
- Negligible labor cost: only periodic backwashing required.
- Durable material with a long life and wide temperature range.
- Weighs only 36-38 lbs./cu. ft.
| Physical properties | |
| Bulk Density | 36-38 lbs./cu. ft. |
| Effective Size | 0.48 mm |
| Uniformity Coefficient | 2.7 |
| Mesh Size | 12 x 50 |
| Specific Gravity | 2.0 gm/cc |
| Color | Black |
| Conditions for operation | |
| Bed depth | 24-36 in. 10-18 in multibed filters |
| Freeboard | 50% of bed depth (min.) |
| Service flow rate | 5 gpm/sq. ft. or higher depending upon local conditions |
| Backwash flow rate | 12-18 gpm/sq. ft. |
| Backwash bed expansion |
20-40% of bed depth |
CONTACT US NOW FOR YOUR PALLET OF BIRM
BIRM DATA SHEET

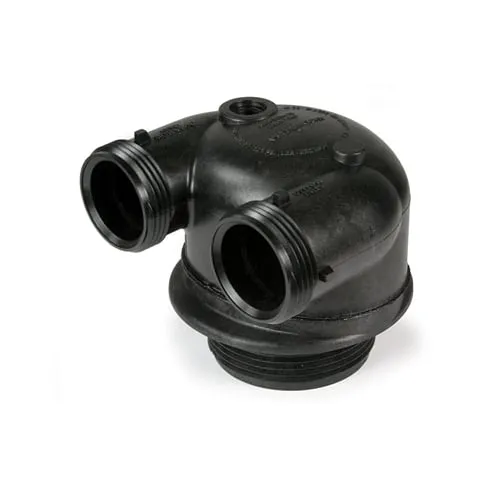

CL D1400 1" IN/OUT HEAD
CLACK SOFTENER 10 CUBIC FEET
Grain: 320,000
Service Flow: 70gpm
Backwash Flow: 52gpm
Brine Tanks Dimensions: 24” x 50” with (100 gal. capacity / 900 lbs. salt)
Resin Tank: 24x72 Resin Tank
CLACK SOFTENER 7 CUBIC FEET
Grain: 224,000
Service Flow: 34gpm
Backwash Flow: 32gpm
Brine Tanks Dimensions: 14” x 14” x 34” (25 gal. capacity / 248 lbs. salt)
Resin Tank: 21x62
CLACK SOFTENER 4 CUBIC FEET
Grain: 128,000
Service Flow: 27gpm
Backwash Flow: 27gpm
Brine Tanks Dimensions: 14” x 14” x 34” (25 gal. capacity / 248 lbs. salt)
Resin Tank: 16x65 Resin Tank
CLACK SOFTENER 3 CUBIC FEET
Grain: 96,000
Service Flow: 27gpm
Backwash Flow: 27gpm
Brine Tanks Dimensions: 14” x 14” x 34” (25 gal. capacity / 248 lbs. salt)
Resin Tank: 14x65 Resin Tank
CLACK SOFTENER 2.5 CUBIC FEET
Grain: 80,000
Service Flow: 27gpm
Backwash Flow: 27gpm
Brine Tanks Dimensions: 14” x 14” x 34” (25 gal. capacity / 248 lbs. salt)
Resin Tank: 13x54 Resin Tank
CLACK SOFTENER 2 CUBIC FEET
Grain: 64,000
Service Flow: 27gpm
Backwash Flow: 27gpm
Brine Tanks Dimensions: 14” x 14” x 34” (25 gal. capacity / 248 lbs. salt)
Resin Tank: 12x48 Resin Tank
CLACK SOFTENER 1.5 CUBIC FEET
Grain: 48,000
Service Flow: 27gpm
Backwash Flow: 27gpm
Brine Tanks Dimensions: 14” x 14” x 34” (25 gal. capacity / 248 lbs. salt)
Resin Tank: 10x54 Resin Tank
CLACK SOFTENER 1 CUBIC FEET
Grain: 32,000
Service Flow: 27gpm
Backwash Flow: 27gpm
Brine Tanks Dimensions: 14” x 14” x 34” (25 gal. capacity / 248 lbs. salt)
Resin Tank: 9x48 Resin Tank

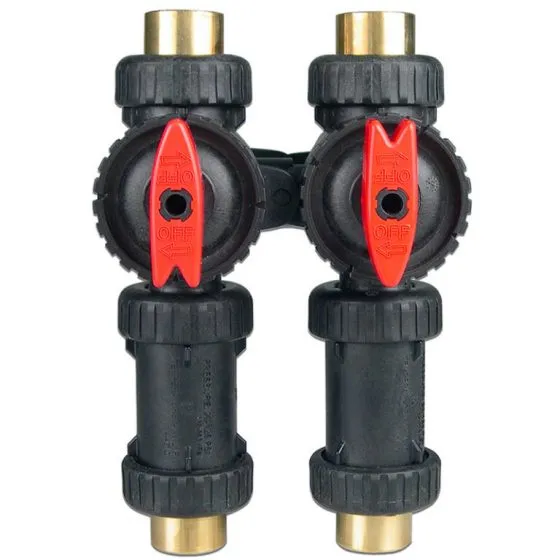

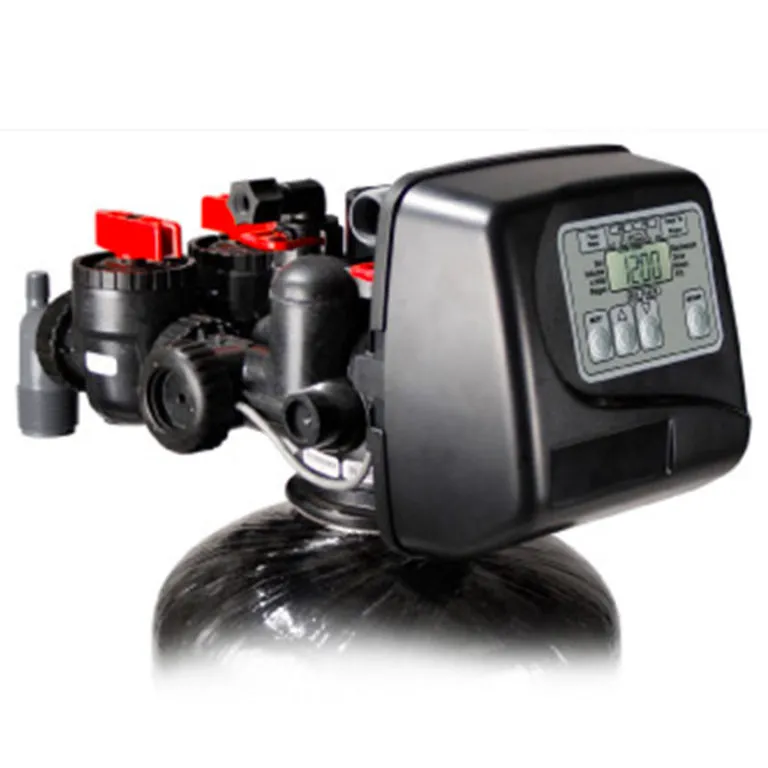

BYPASS ASSEMBLY
Can be used with any brand of filter valve, softener valve, or in/out filter (all kind of adapters are available)
For valves 1” (V3006), 1.25” (V3006), 1.5” (V3097), 2” (V3098), 3” (V3099)
Operating pressure: 20-125 psi
Operating temperature: 40-110 °F (4-43 °C)
For installation on cold water supply only
TWIN CONTROL VALVES
| In/Out | 1" | 1.25" | 1.5" | 2" |
|---|---|---|---|---|
| Item Part | VTT1EEDM | Ask | Ask | Ask |
| Configuration | 2 valves V1EEDM with V3069 motorized alternator | 2 valves V125EEDM with V3069 motorized alternator | 2 valves V15EEDT with V3071 motorized alternator and V3040-15 meter | 2 valves V2EEDT with V3076 motorized alternator and V3094-15 meter |

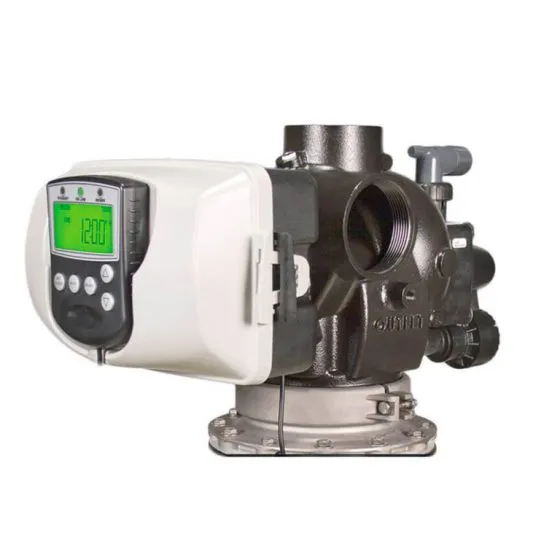

3” CONTROL VALVE (SOFTENER)
| WS3 | |
|---|---|
| Type | by Meter |
| Service Flow @ 15psi drop |
250 gpm |
| Backwash Flow @ 25psi drop |
220 gpm |
| Drain connection | 3" FNPT |
| Brine connection | 1" NPT |
| Distributor pipe | 90 mm OD |
| Meter flow | 13-1325 lpm |
| Meter range | 0.04-3800 m3 |
| Totalizer | YES |
| Tank’s Head | 6" Flange |
WS3 specification sheet

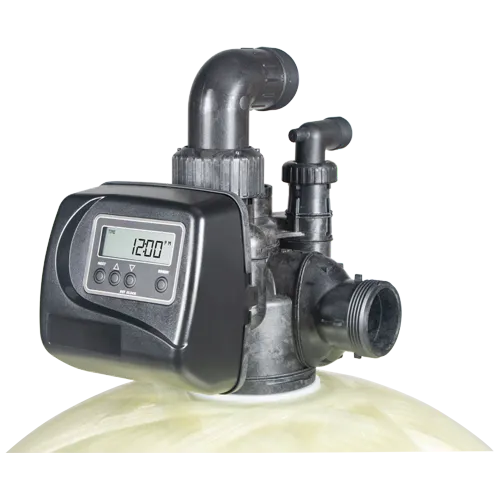

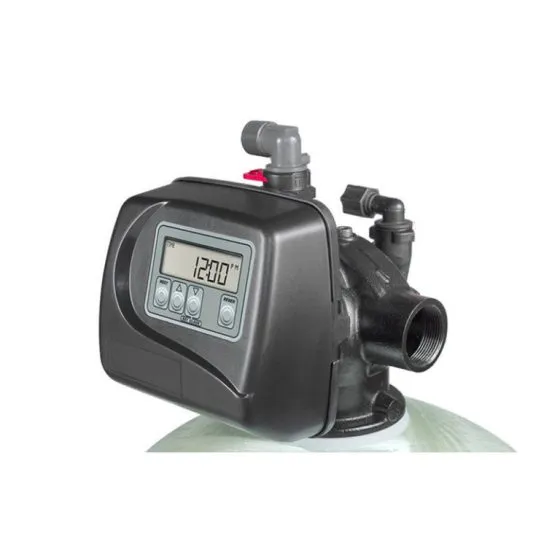

2” CONTROL VALVES (SOFTENER)
| WS2EI | WS2EE | WS2CI | WS2SD/SP | WS2SQ | |
|---|---|---|---|---|---|
| Type | by Time | by Meter | by Meter | by Meter | by Meter |
| Service Flow | 115 gpm | 115 gpm | 115 gpm | 115 gpm | 115 gpm |
| Backwash Flow | 80 gpm | 80 gpm | 80 gpm | 80 gpm | 80 gpm |
| Drain connection | 1.5" FNPT | 1.5" FNPT | 1.5" FNPT | 1.5" FNPT | 1.5" FNPT |
| Brine connection | 1" NPT | 1" NPT | 1" NPT | 1" NPT | 1" NPT |
| Distributor pipe | 50 mm OD | 50 mm OD | 50 mm OD | 50 mm OD | 50 mm OD |
| Meter flow | 1.5–150 gpm | 1.5–150 gpm | 1.5–150 gpm | 1.5–150 gpm | 1.5–150 gpm |
| Meter range | 0.02-5700 m3 | 0.04-5700 m3 | 0.02-5700 m3 | 0.04-5700 m3 | 0.02-5700 m3 |
| Totalizer | YES | YES | YES | YES | YES |
| Tank’s Head | 4" | 4" | 4" | 4" | 4" |
WS2EI DATA SHEET
WS2SQ DATA SHEET
WS2SD/SP DATA SHEET
WS2EE DATA SHEET
WS2CI DATA SHEET

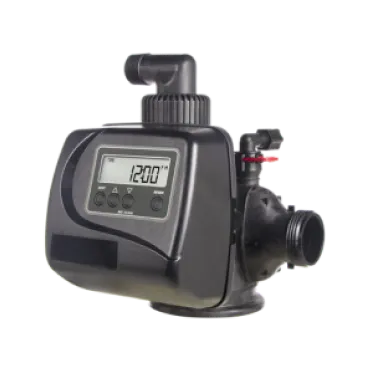

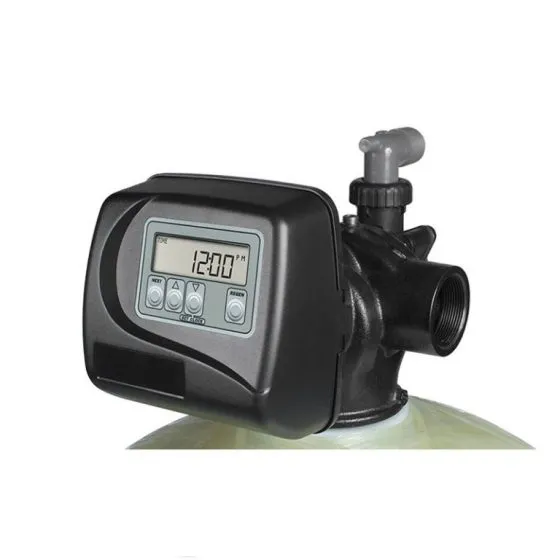

1.5” CONTROL VALVES (SOFTENER)
