CSM
CSM® NANOFILTRATION MEMBRANES
| Model | Flow Rate (GPD,m3/d) |
NaCl Rejection(%) |
MgSO4 Rejection (%) |
Diameter/ Length (inch) |
Test Conditions | DATA SHEET |
|---|---|---|---|---|---|---|
| NE8040-40* | 12,000 (45.4) | 20-40 | 99.0 | 8.0 / 40 | NE Standard | VIEW |
| NE8040-70* | 9,000 (34.1) | 30-70 | 99.0 | 8.0 / 40 | NE Standard (MgSO4) | VIEW |
| NE8040-90* | 8,000 (30.3) | 90-97 | 8.0 / 40 | NE Standard | VIEW | |
| NE8040-ARM | 5,400 (20.4) | 99.0 | 8.0 / 40 | NE Standard (MgSO4) | VIEW | |
| NE8040-SRM | 8,500 (32.2) | 99.5 | 8.0 / 40 | NE Standard (MgSO4) | VIEW | |
| NE4040-40* | 2,500 (9.5) | 20-40 | 99.0 | 4.0 / 40 | NE Standard | VIEW |
| NE4040-70* | 1,900 (7.2) | 30-70 | 99.0 | 4.0 / 40 | NE Standard | VIEW |
| NE4040-90* | 1,700 (6.4) | 90-97 | 4.0 / 40 | NE Standard (NaCl) | VIEW | |
| NE4040-ARM | 1,100 (4.2) | 99.0 | 8.0 / 40 | NE Standard (MgSO4) | VIEW | |
| NE4040-SRM | 1,800 (6.8) | 99.5 | 8.0 / 40 | NE Standard (MgSO4) | VIEW |

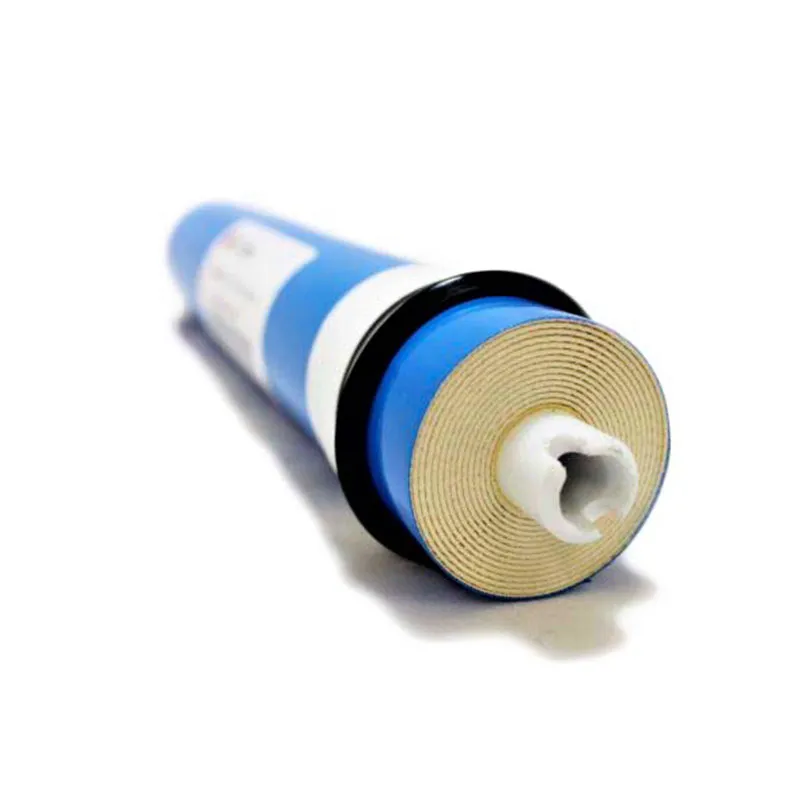

CSM® RESIDENTIAL AND LIGHT COMMERCIAL MEMBRANES
| ITEM PART | SIZE | FLOW RATE (GPD) | CHARACTERISTICS | DATA SHEET |
|---|---|---|---|---|
| CSM: MB-25 | 1.8" x 12" | 24 | VIEW | |
| CSM: MB-50 | 1.8" x 12" | 50 | NSF Certified | VIEW |
| CSM: MB-80 | 1.8" x 12" | 80 | NSF Certified | VIEW |
| CSM: MB-100 | 2.0" x 12" | 100 | NSF Certified | VIEW |
| CSM: MB-150 | 2.0" x 12" | 150 | Low Pressure | VIEW |
| CSM: MB-2521 | 2.5" x 21" | 400 | High Pressure | VIEW |
| CSM: MB-2521BLN | 2.5" x 21" | 400 | Low Pressure | VIEW |
| CSM: MB-2521SW | 2.5" x 21" | 300 | Sea Water | VIEW |
| CSM: MB-2540BE | 2.5" x 40" | 1,000 | High pressure | VIEW |
| CSM: MB-2540BLN | 2.5" x 40" | 930 | Low pressure | VIEW |
| CSM: MB-2540SW | 2.5" x 40" | 560 | Sea Water | VIEW |
| CSM: MB-4021BLN | 4.0" x 21" | 1,200 | Low pressure | VIEW |
| CSM: MB-4021 | 4.0" x 21" | 1,200 | High pressure | VIEW |
| CSM: MB-4040BLN | 4.0" x 40" | 2,600 | Low Pressure, NSF Certified | VIEW |
| CSM: MB-4040BE | 4.0" x 40" | 2,400 | High Pressure, NSF Certified | VIEW |
